Dongguan Eidoll Electronics Co., Ltd. sells Sensata / Texas Instruments KLIXON 17AM series thermostats, which feature dual protection against overcurrent and overtemperature. They boast high operating temperature accuracy, compact size and easy installation.
Our company is equipped with multiple wire cutting machines and various terminal crimping machines. We can process wires according to customized customer requirements with flexible wire lengths.
Standard wires are high-temperature silicone cables compliant with VDE, 0.75mm², with a heat resistance up to 180°C.

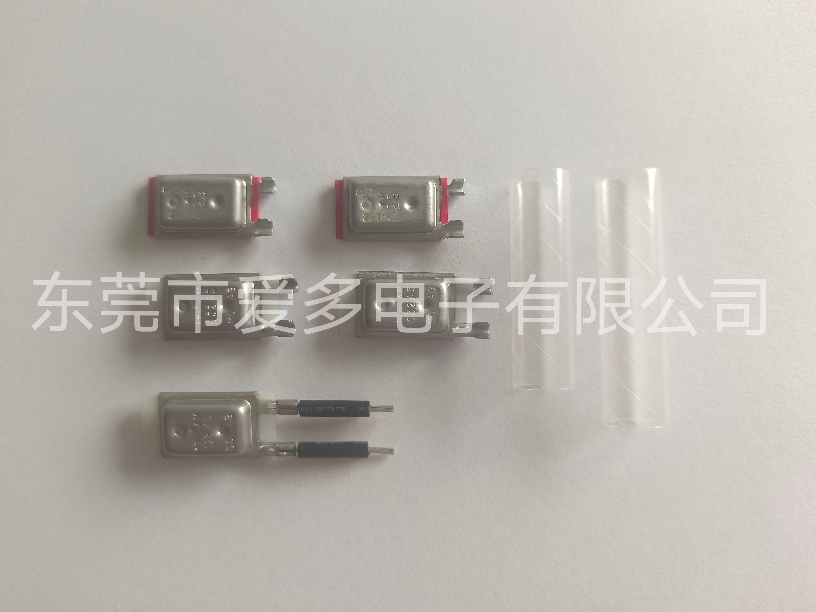

In addition, high-temperature insulating sleeves are fitted on thermostat bodies.
17AM Thermal Protector | Texas Instruments KLIXON USA
Product Introduction (17AM)
The 17AM series thermal protector is manufactured with proprietary Klixon technology from Texas Instruments USA. It is an over-temperature protection component for electrical appliances. Electric current flows through the Klixon bimetallic strip. When abnormal operation causes excessive ambient temperature, the bimetallic strip disconnects the contacts to protect the equipment. Contacts automatically close and reset once the protector cools down to a safe temperature.
The 17AM series also provides overcurrent protection. In cases of short circuit or motor locked rotor, rapid current rise generates thermal effect on the Klixon bimetallic strip, instantly cutting off the protector contacts.
Integrating over-temperature and overcurrent protection, the 17AM thermal protector features compact size, large contact capacity, fast tripping response and stable reliable performance.
Specifications & Features (17AM)
Klixon is a world-renowned international brand with a full range of sensors and controllers, delivering reliable product quality assurance.
Miniature design enables easy installation. Widely applied to motors, pumps, transformers, lighting fixtures and instruments, providing direct and indirect over-temperature protection for heating appliances.
Every tripping temperature is precisely calibrated and inspected. Klixon bimetallic strips achieve ultra-fast tripping.
Abundant temperature options: 60℃~160℃±5℃, available in 5℃ increments.
Large contact rating: 9A AC 250V, 22A AC 115V.
Dual protection against temperature rise and overcurrent.
Stainless steel housing with gasket, suitable for most dipping processes.
Custom wire specifications and lengths available.
High repeatability of temperature response throughout service life.
Global safety certifications: UL, CSA, VDE, ENEC (EU), KEMA, CQC, fully compliant with EU RoHS environmental standards.
Technical Parameters (17AM)
Electrical Ratings:
22A AC 115V
9A AC 250V
20A DC 16V
Temperature Range: 65℃~160℃±5℃, available in 5℃ increments.
Automatic Reset Life: 10,000 cycles

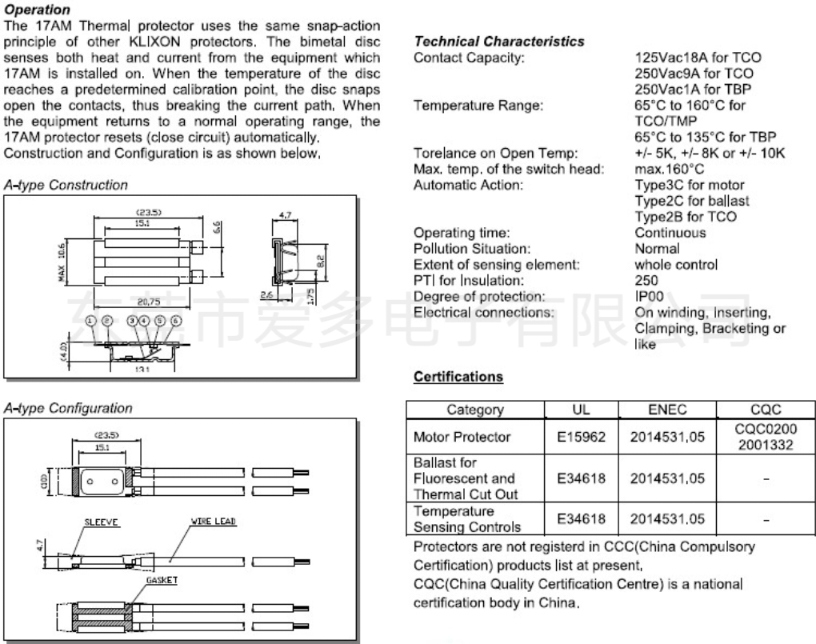

Structure: Sealed steel casing with special temperature-sensing insulating sheath.
Dimensions (L×W×H): 23 × 10 × 4.6 mm
Applications (17AM)
Prevents overheating in the following devices:
- Various motors
- Water pumps
- Air compressors
- Cleaning machines
- Fluorescent & HID electronic ballasts
- Transformers
- Lighting fixtures
- Heating pads, automotive heating blankets, medical hot compresses
- Gluing machines
- Power tools & chargers
- Precision instruments & equipment
- Household

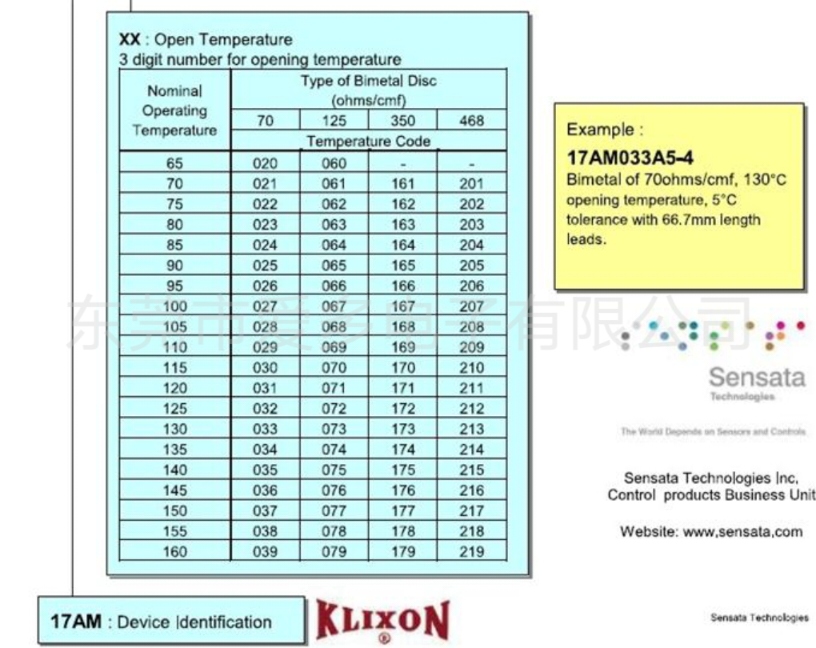

17AM 020 65℃，17AM 021 70℃，17AM 022 75℃，17AM 023 80℃，17AM 024 85℃，17AM 025 90℃，17AM 026 95℃，17AM 027 100℃，17AM 028 105℃，17AM 029 110℃，17AM 030 115℃，17AM 031 120℃，17AM 032 125℃，17AM 033 130℃，17AM 034 135℃，17AM 035 140℃，17AM 036 145℃，17AM 037 150℃，17AM 038 155℃，17AM 039 160℃
