Dongguan Eidoll Electronics Co., Ltd. acts as an authorized agent for KLIXON / Sensata 7AM series thermal switches. Detailed model specifications are as follows:

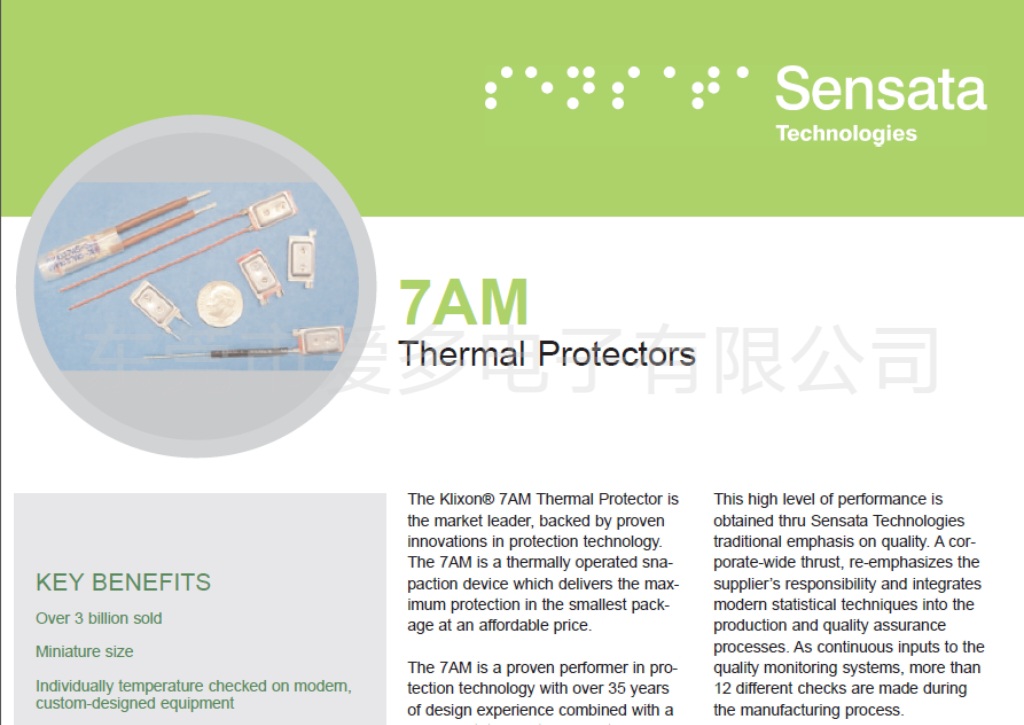

Model: 7AM Thermal Protector

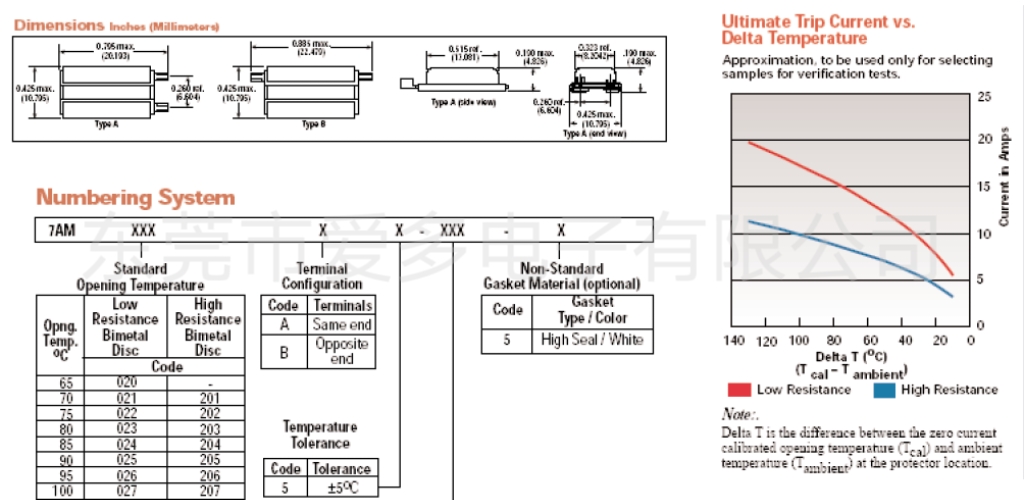

Technical Parameters

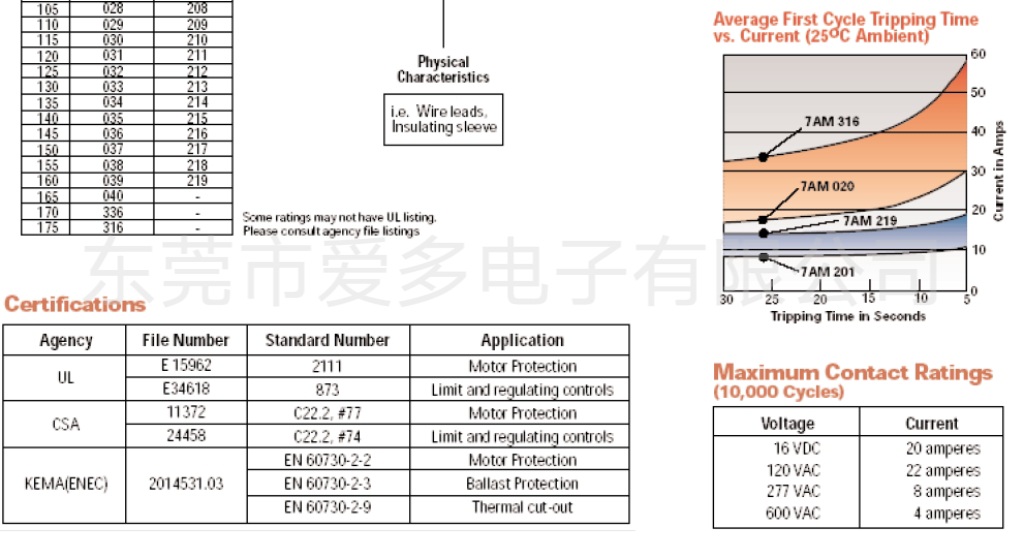

Tripping temperature range: 65℃～175℃±5℃, available in 5℃ increments
Electrical rating: 22A / 115V AC
Electrical rating: 9A / 240V AC
Electrical rating: 20A / 16V DC
Automatic reset life: 10,000 cycles
Structure: Sealed steel housing with special temperature-sensing insulating sheath
Dimensions (L×W×T): 20×10×4.7 mm
Product Advantages
Adopting Klixon bimetallic strips, the 7AM thermal protector features stable and reliable performance and suits a wide range of applications. It is a miniature, quick-acting thermal device widely used in thermal protection industry.
Each temperature specification of the 7AM adopts specially manufactured bimetallic strips. Every tripping temperature is calibrated and inspected strictly. The device maintains stable disconnection and reset performance throughout the rated cycle life to ensure continuous and reliable operation.
With miniaturized design and long stable service life, the 7AM thermal protector is applicable to motors, pumps, transformers, lighting fixtures, instruments and equipment. It provides direct and indirect over-temperature protection for heating electrical appliances.
Fast power cut-off upon abnormal temperature rise.
Abundant temperature options: 60℃～175℃±5℃, every 5℃ available.
Large contact capacity: 9A / 250V AC, 22A / 115V AC, 20A / 16V DC
Dual protection against overtemperature and overcurrent
Custom wires with various specifications and lengths can be crimped as per customer requirements.
Approved by global safety certifications including UL, CSA, VDE, CQC, and compliant with EU RoHS environmental standards.
Main Applications:
Various motors
Submersible pumps, cleaning machines
Transformers, ballasts
Lighting fixtures
Heating pads, automotive heating blankets
Power tools
Heating appliances, household appliances, instruments and equipment

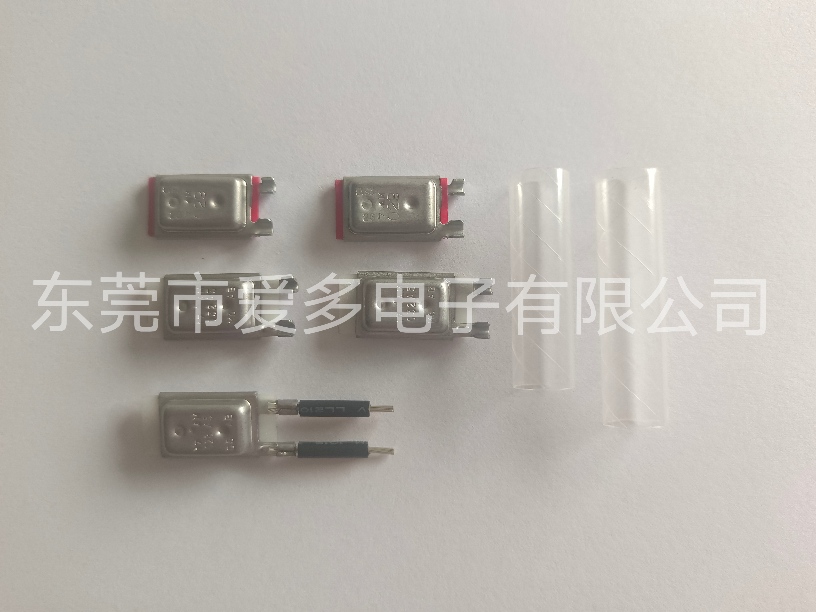

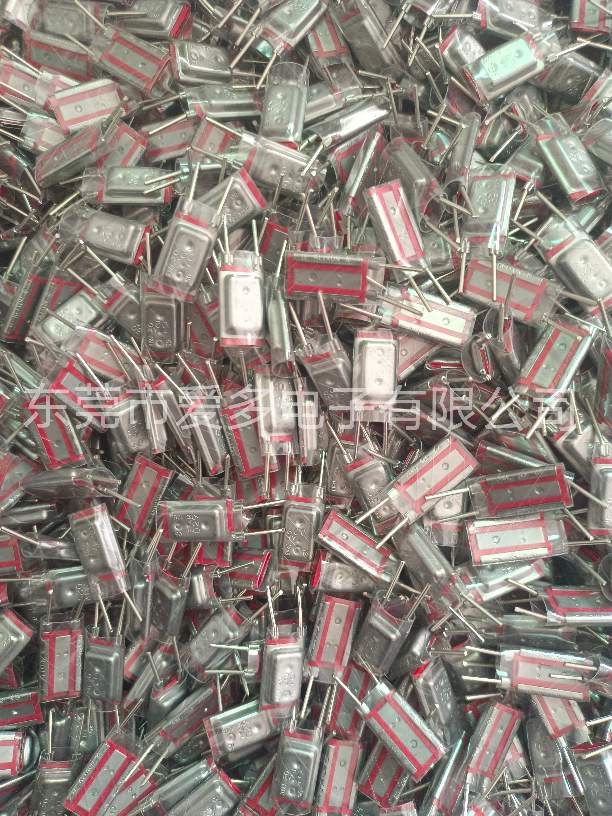

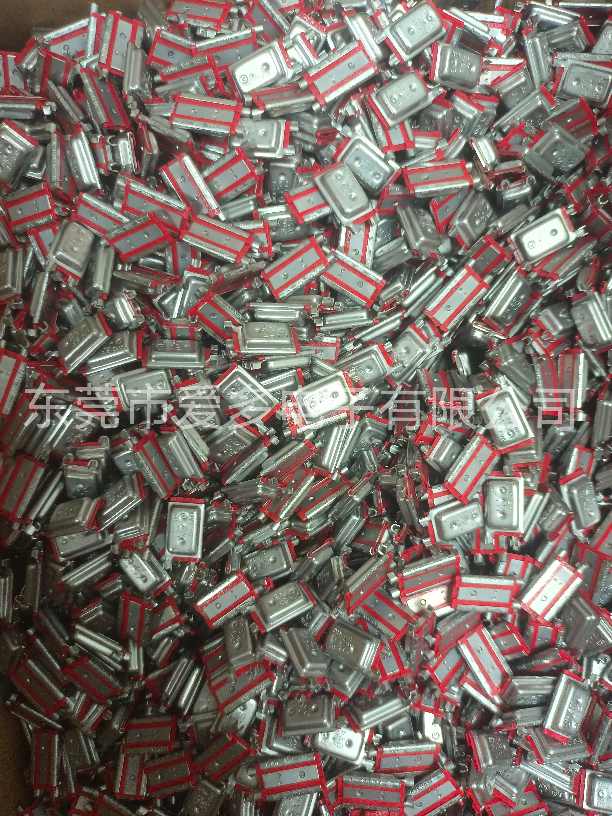

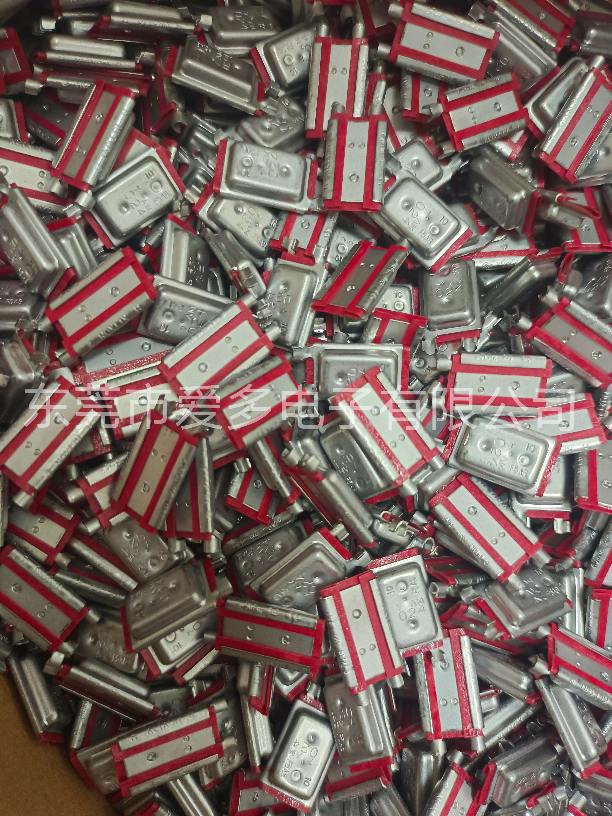

Pictures of 7AM Thermal Switch
Features:
● The 7AM thermal protector is manufactured with proprietary Klixon technology from Texas Instruments USA. It serves as a protection component against overheating and overload of electrical appliances and motors.

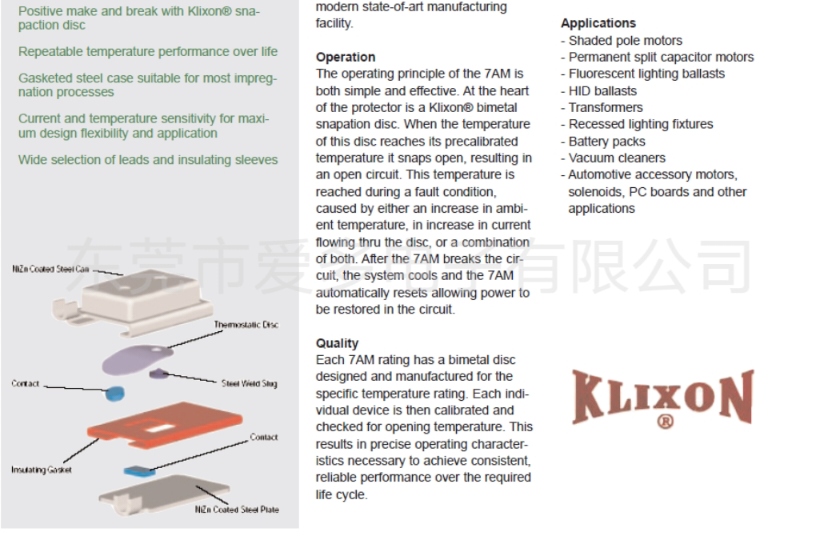

● Working principle of 7AM thermal protector: Electric current flows through the Klixon bimetallic strip and contacts. When abnormal operation causes excessive ambient temperature or overcurrent, the bimetallic strip reacts quickly and disconnects the circuit once the temperature reaches the tripping threshold. When the temperature drops to the reset value, the Klixon bimetallic strip automatically closes rapidly.
