Dongguan Eidoll sales the S.W.C temperature fuse, the specification as bellow:
ELECTRICAL RATINGS
RATED VOLTAGE / RATED CURRENT :250V 10A(UL,C-UL,VDE,TUV,PSE,CCC,EK)
125V 15A(UL,C-UL)
250V 15A(VDE,EK)
250V 16A(UL)
INTERRUPTING CURRENT : 250V, ac 15A / 22.5A
TRANSIENT OVERLOAD TEST CURRENT :
DC current pulses, with an amplitude 150 A / 225A
and a duration of 3 ms with 10 s intervals, are applied for
100 successive cycles through the current path.

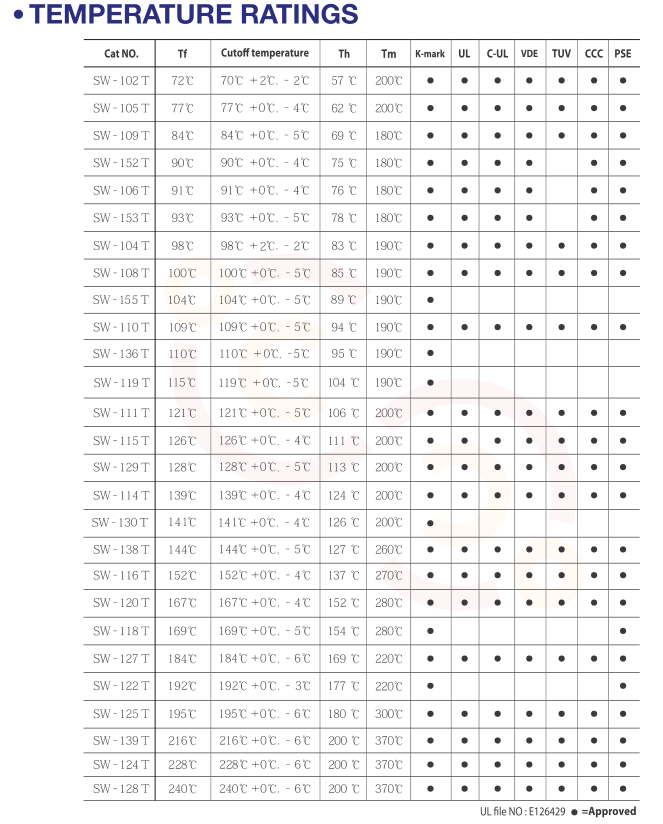

SW-102T 72C
SW-105T 77C
SW-109T 84C
SW-152T 90C
SW-106T 91C
SW-153T 93C
SW-104T 98C
SW-108T 100C
SW-110T 109C
SW-111T 121C
SW-115T 126C
SW-129T 128C
SW-114T 139C
SW-138T 144C
SW-116T 152C
SW-120T 167C
SW-118T 169C
SW-127T 184C
SW-122T 192C
SW-125T 195C
SW-139T 216C
SW-124T 228C
SW-128T 240C
