产品介绍

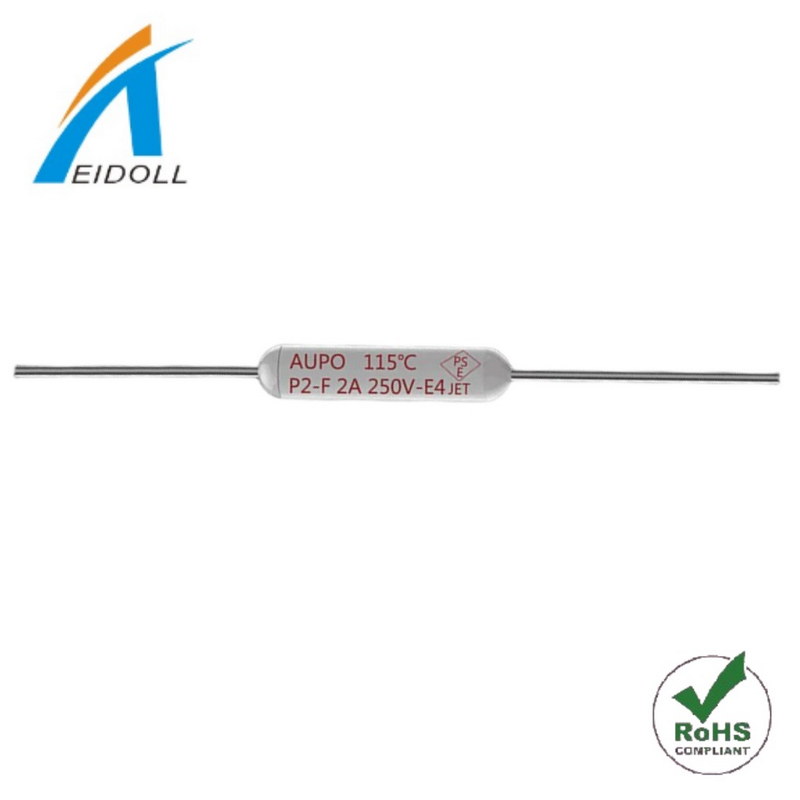

温度保险丝是一种不可复位型热敏保护器件，用于家用电器及工业设备的过热保护，当周围温度升高到某不正常温度时，温度保险丝感受外界温度状态，将电路切断。它的全密封结构确保其熔断系统稳定可靠，不受外界潮湿等恶劣环境影响。它的主要特点是：对外界温度感受灵敏；动作温度准确、稳定；体积小，密封式结构；性能可靠，已获多个国际安全标准认证。
外观和外形尺寸
|
尺寸：(mm) |
P-1A-F系列 |
|||
|
a |
b |
c |
d |
e |
|
6.5±0.5 |
38±3 |
Φ0.54±0.05 |
Φ2.1±0.1 |
2.4 or below |
型号及主要技术参数（1A系列产品）
|
型号 |
额定动作温度 |
实测动作温度 |
保持温度 |
极限温度 |
额定电流 |
额定电压 |
UL |
CUL |
VDE |
PSE |
CCC |
KC |
RoHS |
|
P2-1A-F |
115℃ |
112±3℃ |
85℃ |
180℃ |
1A |
250Vac |
● |
● |
● |
● |
● |
● |
● |
|
P3-1A-F |
125℃ |
120±3℃ |
97℃ |
180℃ |
1A |
250Vac |
● |
● |
● |
● |
● |
● |
● |
|
P4-1A-F |
130℃ |
126±2℃ |
102℃ |
180℃ |
1A |
250Vac |
● |
● |
● |
● |
● |
● |
● |
|
P5-1A-F |
135℃ |
131±3℃ |
105℃ |
180℃ |
1A |
250Vac |
● |
● |
● |
● |
● |
● |
● |
|
P9-1A-F |
138℃ |
135±2℃ |
108℃ |
180℃ |
1A |
250Vac |
● |
● |
● |
● |
● |
● |
● |
|
P7-1A-F |
150℃ |
145±3℃ |
120℃ |
180℃ |
1A |
250Vac |
● |
● |
● |
● |
● |
● |
|
外观和外形尺寸
|
尺寸：(mm) |
P-F系列 |
|||
|
a |
b |
c |
d |
e |
|
9.0±0.5 |
38±3 |
Φ0.54±0.05 |
Φ2.5±0.1 |
3.3 or below |
型号及主要技术参数（2A系列产品）
|
型号 |
额定动作温度 |
实测动作温度 |
保持温度 |
极限温度 |
额定电流 |
额定电压 |
UL |
CUL |
VDE |
PSE |
CCC |
KC |
RoHS |
|
P2-F |
115℃ |
112±3℃ |
85℃ |
180℃ |
2A |
250V |
● |
● |
● |
● |
● |
● |
● |
|
P3-F |
125℃ |
120±3℃ |
97℃ |
180℃ |
2A |
250V |
● |
● |
● |
● |
● |
● |
● |
|
P4-F |
130℃ |
126±2℃ |
102℃ |
180℃ |
2A |
250V |
● |
● |
● |
● |
● |
● |
● |
|
P5-F |
135℃ |
131±3℃ |
105℃ |
180℃ |
2A |
250V |
● |
● |
● |
● |
● |
● |
● |
|
P9-F |
138℃ |
135±2℃ |
108℃ |
180℃ |
2A |
250V |
● |
● |
● |
● |
● |
● |
● |
|

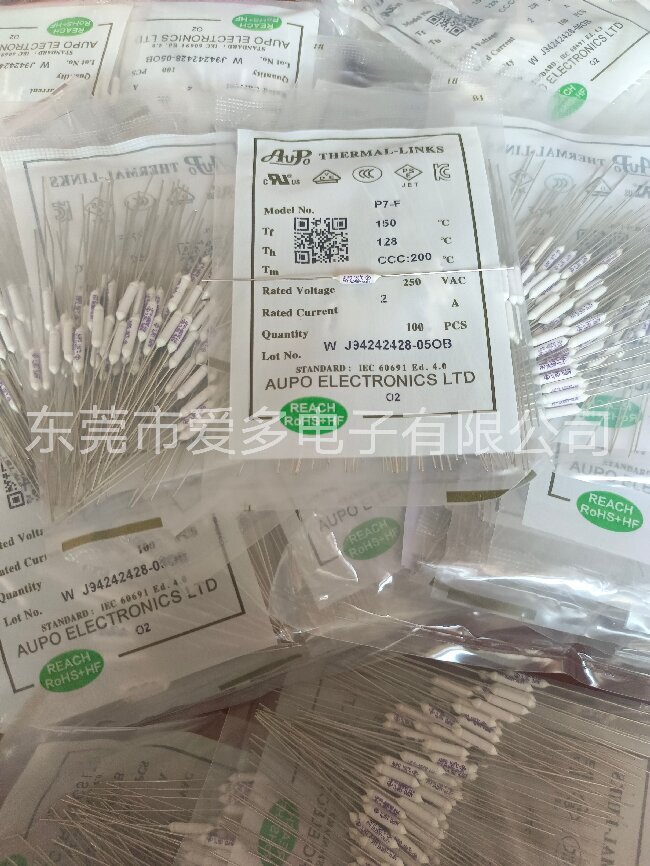

P7-F |
150℃ |
145±3℃ |
120℃ |
180℃ |
2A |
250V |
● |
● |
● |
● |
● |
● |
● |
外观和外形尺寸
|
尺寸：(mm) |
P-3A-F系列 |
|||
|
a |
b |
c |
d |
e |
|
10.0±0.5 |
38±3 |
Φ0.6±0.02 |
Φ3.0±0.1 |
3.3 or below |
型号及主要技术参数（3A系列产品）
|
型号 |
额定动作温度 |
实测动作温度 |
保持温度 |
极限温度 |
额定电流 |
额定电压 |
UL |
CUL |
VDE |
PSE |
CCC |
KC |
RoHS |
|
P0-3A-F |
84℃ |
82±2℃ |
55℃ |
180℃ |
3A |
250Vac |
● |
● |
● |
● |
● |
● |
● |
|
P2-3A-F |
115℃ |
112±3℃ |
75℃ |
180℃ |
3A |
250Vac |
● |
● |
● |
● |
● |
● |
● |
|
P3-3A-F |
125℃ |
120±3℃ |
85℃ |
180℃ |
3A |
250Vac |
● |
● |
● |
● |
● |
● |
● |
|
P4-3A-F |
130℃ |
126±2℃ |
90℃ |
180℃ |
3A |
250Vac |
● |
● |
● |
● |
● |
● |
● |
|
P5-3A-F |
135℃ |
131±3℃ |
90℃ |
180℃ |
3A |
250Vac |
● |
● |
● |
● |
● |
● |
● |
|
P9-3A-F |
138℃ |
135±2℃ |
93℃ |
180℃ |
3A |
250Vac |
● |
● |
● |
● |
● |
● |
● |
|
P7-3A-F |
150℃ |
145±3℃ |
105℃ |
180℃ |
3A |
250Vac |
● |
● |
● |
● |
● |
● |
● |
外观和外形尺寸
|
尺寸：(mm) |
P-5A-F系列 |
|||
|
a |
b |
c |
d |
e |
|
11.5±0.5 |
38±3 |
Φ0.6±0.02 |
Φ3.3±0.2 |
3.6 or below |
型号及主要技术参数（5A系列产品）
|
型号 |
额定动作温度 |
实测动作温度 |
保持温度 |
极限温度 |
额定电流 |
额定电压 |
UL |
CUL |
VDE |
PSE |
CCC |
KC |
RoHS |
|
P0-5A-F |
84℃ |
82±2℃ |
55℃ |
180℃ |
5A |
250Vac |
● |
● |
● |
● |
● |
● |
● |
|
P2-5A-F |
115℃ |
112±3℃ |
75℃ |
180℃ |
5A |
250Vac |
● |
● |
● |
● |
● |
● |
● |
|

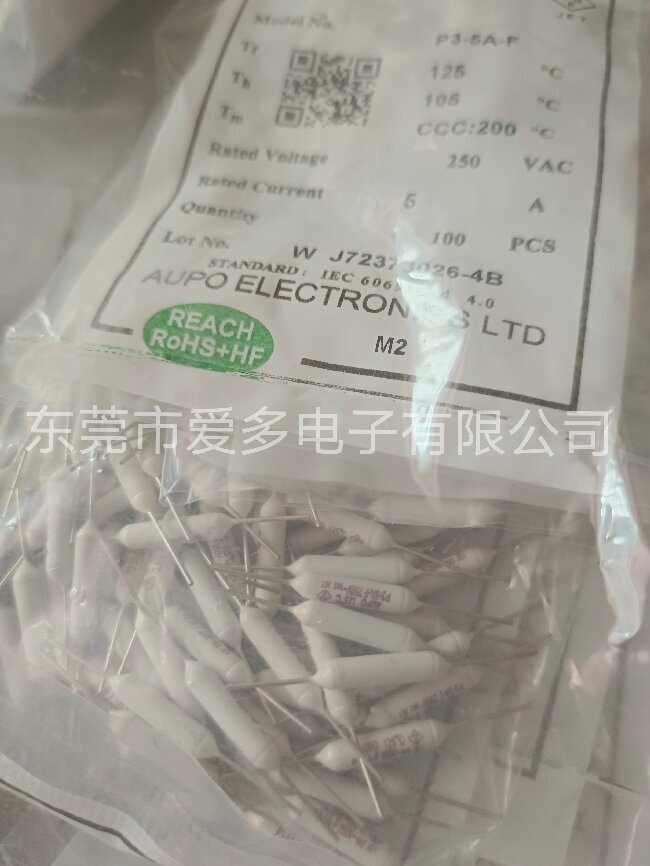

P3-5A-F |
125℃ |
120±3℃ |
85℃ |
180℃ |
5A |
250Vac |
● |
● |
● |
● |
● |
● |
● |
|
P4-5A-F |
130℃ |
126±2℃ |
90℃ |
180℃ |
5A |
250Vac |
● |
● |
● |
● |
● |
● |
● |
|
P5-5A-F |
135℃ |
131±3℃ |
90℃ |
180℃ |
5A |
250Vac |
● |
● |
● |
● |
● |
● |
● |
|
P9-5A-F |
138℃ |
135±2℃ |
93℃ |
180℃ |
5A |
250Vac |
● |
● |
● |
● |
● |
● |
● |
|
P7-5A-F |
150℃ |
145±3℃ |
105℃ |
180℃ |
5A |
250Vac |
● |
● |
● |
● |
● |
● |
● |
参数说明
* 额定动作温度 Rated functioning temperature ( Tf)
温度保险丝按安全标准规定方法测试，改变其导电状态的温度。按基于IEC691的安规标准规定，
温度保险丝必须在上述温度+0/-10℃范围内动作。简称Tf.
* 实际动作温度 Fusing-off temperature
温度保险丝在硅油池内以每分钟0.5 -1.0℃速率升温，检测电流小于10mA条件下所测得的
熔断温度。它是温度保险丝的实际动作温度。
* 保持温度 Holding temperature ( Th )
温度保险丝在通过额定电流时，能保持168小时而不会改变其导电状态的最高温度。用Th表示。
* 极限温度 Maximum temperature limit ( Tm )
温度保险丝能承受10分钟而不会发生重新接通现象的最高温度。简称为Tm.
* 额定电流 Rated current ( Ir )
温度保险丝所能承载的最大电流。
* 额定电压Rated voltage ( Ur )
温度保险丝最高工作电压.
